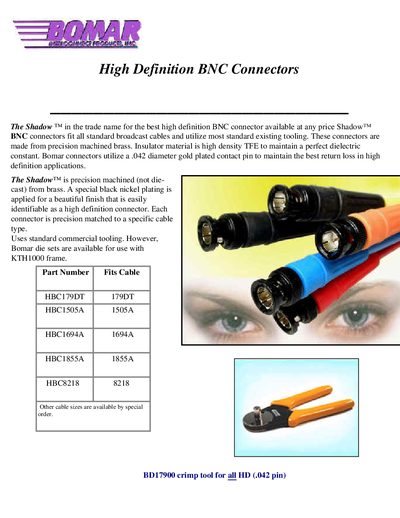

The document describes the features and characteristics of the Shadow™ high-definition BNC connectors, including compatibility with standard broadcast cables, precision machined brass material, high-density TFE insulator material, .042 diameter gold plated contact pin, and black nickel plating for a distinctive appearance.
The document describes the Shadow™ high definition BNC connector series manufactured by Bomar. These precision-machined brass connectors feature a special black nickel plating and utilize a .042 diameter gold-plated contact pin to ensure optimal return loss in high-definition applications.
The text details that while standard commercial tooling can be used, specific Bomar die sets are available for use with the KTH1000 frame. The BD17900 is identified as a crimp tool compatible with all HD connectors featuring .042 pins.
The BD17900 is a crimp tool designed for all HD connectors that use a .042 pin.
The connectors are precision machined from brass and utilize a high density TFE insulator.
A special black nickel plating is applied for a beautiful finish.
