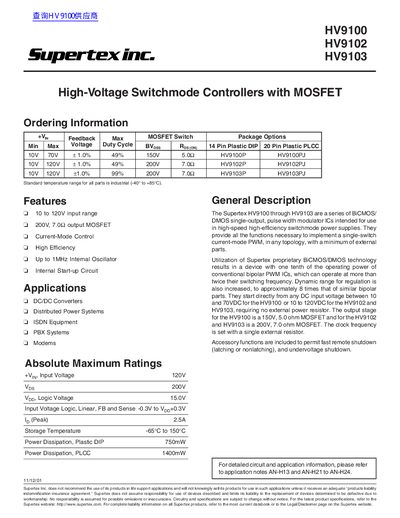

The Supertex HV9100 through HV9103 are a series of BiCMOS/DMOS single-output, pulse width modulator ICs intended for use in high-speed high-efficiency switchmode power supplies. They provide all the functions necessary to implement a single-switch current-mode PWM, in any topology, with a minimum of external parts. Utilization of Supertex proprietary BiCMOS/DMOS technology results in a device with one tenth of the operating power of conventional bipolar PWM ICs, which can operate at more than twice their switching frequency. Dynamic range for regulation is also increased, to approximately 8 times that of similar bipolar parts. They start directly from any DC input voltage between 10 and 70VDC for the HV9100 or 10 to 120VDC for the HV9102 and HV9103, requiring no external power resistor. The output stage for the HV9100 is a 150V, 5.0 ohm MOSFET and for the HV9102 and HV9103 is a 200V, 7.0 ohm MOSFET. The clock frequency is set with a single external resistor. Accessory functions are included to permit fast remote shutdown (latching or nonlatching), and undervoltage shutdown. Absolute Maximum Ratings +VIN, Input Voltage 120V VDS 200V VDD, Logic Voltage 15.0V Input Voltage Logic, Linear, FB and Sense -0.3V to VDD+0.3V ID (Peak) 2.5A Storage Temperature -65°C to 150°C Power Dissipation, Plastic DIP 750mW Power Dissipation, PLCC 1400mW Applications ❏ DC/DC Converters ❏ Distributed Power Systems ❏ ISDN Equipment ❏ PBX Systems ❏ Modems Features ❏ 10 to 120V in
The Supertex HV9100 through HV9103 are a series of BiCMOS/DMOS single-output pulse width modulator ICs intended for use in high-speed, high-efficiency switchmode power supplies. These devices provide all necessary functions to implement a single-switch current-mode PWM in any topology with minimal external parts.
The controllers feature an internal oscillator and start directly from DC input voltages between 10V and 70V (HV9100) or 10V and 120V (HV9102/HV9103), requiring no external power resistor. The output stage includes a built-in MOSFET with ratings of 150V/5.0 ohms for the HV9100, and 200V/7.0 ohms for the HV9102 and HV9103.
| Input Voltage Range (HV9100) | 10V to 70V |
|---|---|
| Input Voltage Range (HV9102/HV9103) | 10V to 120V |
| Output MOSFET Voltage (HV9100) | 150V |
| Output MOSFET Voltage (HV9102/HV9103) | 200V |
| Maximum Switching Frequency | Up to 1MHz |
| Operating Temperature Range | -40°C to +85°C |
No, they start directly from the input voltage range and do not require an external power resistor.
The output stage for the HV9100 has an on-resistance of 5.0 ohms.
The maximum duty cycle for the HV9103 is 99.6%.
