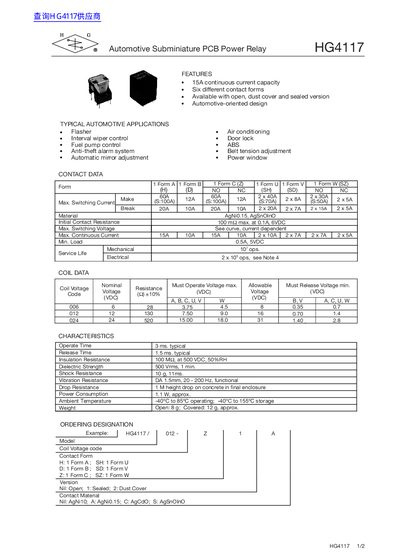

HG4117 is an automotive subminiature PCB power relay with 15A continuous current capacity, six different contact forms and available with open, dust cover and sealed version.
The document is a technical datasheet for the Willow Technologies Limited HG4117 Automotive Subminiature PCB Power Relay. It outlines key features such as a 15A continuous current capacity and availability in open, dust cover, and sealed versions. The relay supports six different contact forms (Form A through Form W) suitable for various automotive applications including flashers, air conditioning, interval wiper control, door locks, fuel pump control, ABS, anti-theft alarm systems, belt tension adjustment, automatic mirror adjustment, and power windows.
| Continuous Current Capacity | 15A |
|---|---|
| Contact Forms Available | Six different contact forms (Form A, B, C, U, V, W) |
| Initial Contact Resistance | 100 mQ max. |
| Mechanical Service Life | 10^6 ops. |
| Electrical Service Life | 2 x 10^6 ops. |
| Operate Time | 3 ms. typical |
| Release Time | 1.5 ms. typical |
| Ambient Operating Temperature | -40°C to 85°C |
Typical applications include flasher, air conditioning, interval wiper control, door lock, fuel pump control, ABS, anti-theft alarm system, belt tension adjustment, automatic mirror adjustment, and power window.
The relay has a maximum continuous current capacity of 15A.
