This document is a manual for the M8077 XMAS LIGHT CONTROL product, which describes the features and functions of the product. The product has 8 functions, including 16 songs, volume adjustment, speed adjustment, etc. It is suitable for applications such as Christmas light control.

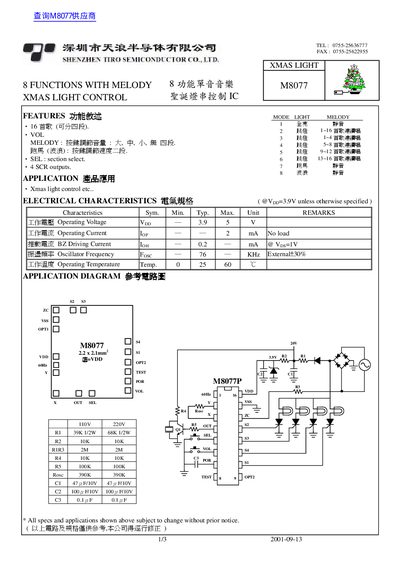

The document describes the M8077, a chip designed by Shenzhen Tiro Semiconductor Co., Ltd. It serves as an Xmas light controller featuring eight distinct lighting modes and built-in melody playback capabilities.
Key specifications include an operating voltage of 3.9V or higher, a maximum operating current of 2mA under no-load conditions, and an oscillator frequency of approximately 76kHz. The device supports various output configurations for driving lights.
| Operating Current (Top) No load | 2 mA |
|---|---|
| Driving Current (Tor) | 0.2 mA |
| Oscillator Frequency (Fosc) | 76 KHz |
| Operating Temperature Range | 0 to 60 degrees Celsius |
The M8077 provides 8 light control modes and melody playback.
Included songs include Jingle Bells, Rudolph, Santa Claus Is Coming To Town, Silent Night, and others.
