The PDF file introduces the temperature dependence of the RTO-A model MANGANIN resistors. The file also provides the power derating curve for Widerstände. The product features 50 watts of continuous power and a SOT 227B (ISOTOP) compatible outline.

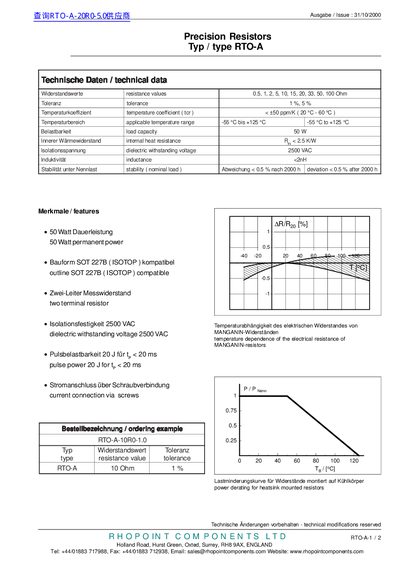

This document provides technical specifications for the RHOPOINT RTO-A type precision resistors. Key features include a permanent power rating of 50 Watts, a temperature coefficient of less than +50 ppm/K between 20°C and 60°C, and an applicable operating temperature range from -55°C to +125°C.
| Resistance Values | 0.5, 1, 2, 5, 10, 15, 20, 33, 50, 100 Ohm |
|---|---|
| Tolerance | 1%, 5% |
| Operating Temperature Range | -55 °C to +125 °C |
| Load Capacity | 50 W |
| Dielectric Withstanding Voltage | 2500 VAC |
| Inductance | < 2nH |
| Outline Compatibility | SOT 227B (ISOTOP) compatible |
The permanent power rating is 50 Watts.
Yes, the outline is SOT 227B (ISOTOP) compatible.
The applicable temperature range is from -55°C to +125°C.
