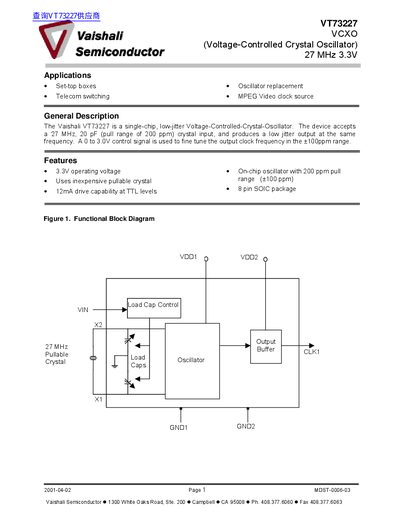

The VT73227 is a single-chip, low-jitter Voltage-Controlled-Crystal-Oscillator. The device accepts a 27 MHz, 20 pF (pull range of 200 ppm) crystal input, and produces a low jitter output at the same frequency. A 0 to 3.0V control signal is used to fine tune the output clock frequency in the ±100ppm range.
The Vaishali VT73227 is a single-chip, low-jitter Voltage-Controlled Crystal Oscillator (VCXO) designed for applications such as set-top boxes and telecom switching. It accepts a 27 MHz pullable crystal input and produces a low jitter output at the same frequency.
| Frequency | 27 MHz |
|---|---|
| Operating Voltage | 3.15 V to 3.45 V |
| Package Type | 8 pin SOIC |
| Operating Temperature | 0°C to 70°C |
| Output Jitter (Peak-to-Peak) | 150 ps |
The device accepts a 27 MHz pullable crystal input.
A 0 to 3.0V control signal is used to fine tune the output clock frequency in the +100ppm range.
