FlatPAC is a low-profile, agency-approved switching power supply from Vicor that offers multiple output power and voltage configurations.
The Vicor FlatPAC combines a modular DC-DC converter with a front-end subassembly to provide power ranging from 50 to 600W. It is designed as a complete, low-profile solution that meets various agency approvals including UL, CSA, TUV, VDE, BABT, and CE.

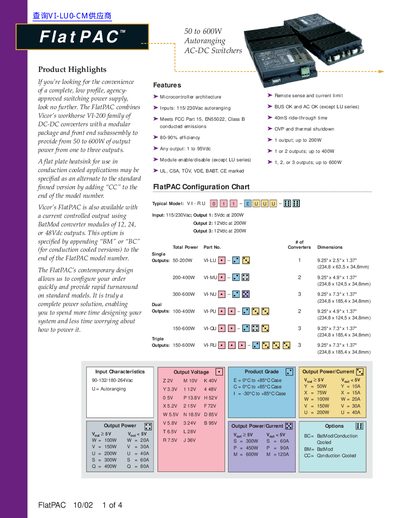

The document provides detailed specifications for single, dual, and triple output configurations, covering input characteristics, output performance, thermal curves, and mechanical dimensions. It also includes application circuit diagrams and resistor values for trimming standard output voltages.
| Input Voltage | 90-132/180-264Vac |
|---|---|
| Line Frequency | 47 to 63Hz (C-grade and E-grade) |
| Efficiency | 80-90% |
| Operating Temperature Range | -30°C to +85°C (I-grade) |
| Ride-through Time | 40ms minimum |
The unit is UL, CSA, TUV, VDE, BABT, and CE marked.
The FlatPAC supports autoranging AC inputs from 90-132Vac and 180-264Vac.
