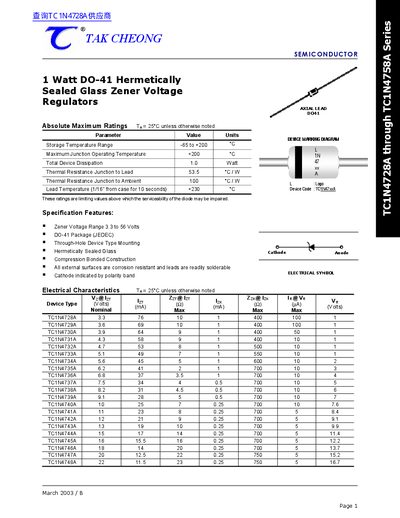

TAK CHEONG ® 1 Watt DO-41 Hermetically Sealed Glass Zener Voltage Regulators absolute maximum ratings, features and electrical characteristics
The document details the specifications for the TC1N47xxA series of semiconductor devices. These are axial lead, through-hole components featuring a Zener voltage range from 3.3 to 56 Volts and a total device dissipation of 1.0 Watt. The regulators utilize a hermetically sealed glass construction with compression bonded leads.
| Total Device Dissipation | 1.0 Watt |
|---|---|
| Zener Voltage Range | 3.3 to 56 Volts |
| Package Type | DO-41 Package (JEDEC) |
The device numbers listed have a standard tolerance of +5%.
The forward voltage is 1.2 V Maximum when Ir = 200 mA.
