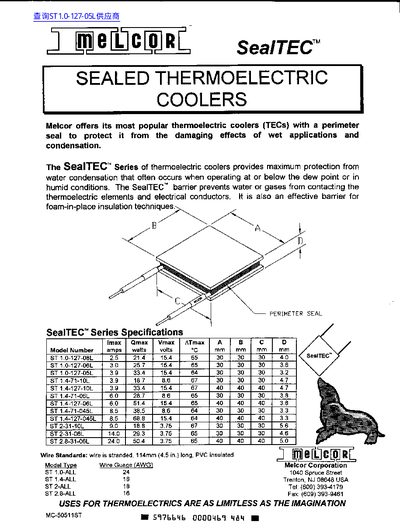

The document introduces the Melcor SealTEC™ Series, a line of thermoelectric coolers (TECs) featuring a perimeter seal. This design protects the internal components from water damage, condensation, and gas exposure, making them suitable for humid conditions or operation at or below the dew point.
| Max Current (Imax) | 24.0 amps |
|---|---|
| Max Power (Qmax) | 68.8 watts |
| Max Voltage (Vmax) | 15.4 volts |
| Max Temperature Difference (ATmax) | 86°C |
The barrier prevents water or gases from contacting the thermoelectric elements and electrical conductors.
The wire is 114mm (4.5 in.) long.
It serves as an effective barrier for foam-in-place insulation.
