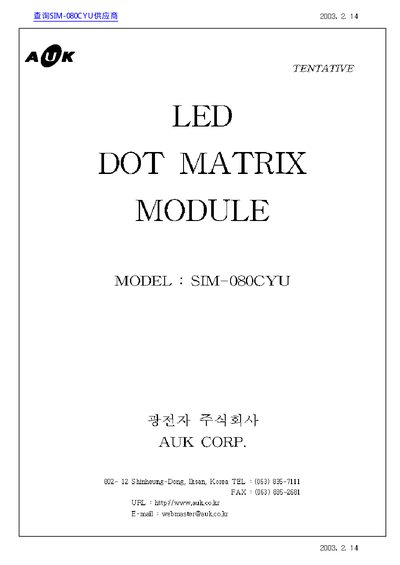

The document describes the AUK SIM-080CYU, a compact 16x16 LED dot matrix module integrated with chip LED lamps. It is designed for graphic and video board applications beyond simple message boards.
Key specifications include an 80x80mm size, yellow display color, and dynamic drive mode with 1/8 duty cycle. The module supports brightness control via a 3-bit switch (10 steps) and includes over-voltage protection.
| Size (WxHxD) | 80x80x11 mm |
|---|---|
| Display Color | Yellow |
| Number of Dots | 256 (16* 16) |
| Drive mode | Dynamic Drivedl/8 Duty |
| Brightness Control | 10 steps |
| Weight | 375g |
| Clock Frequency | 50 MHz |
| Operating Temperature | -25~45 C |
The horizontal viewing angle is +60° and the vertical viewing angle is +75°.
The recommended DC supply circuit voltage (Vcc) and LED voltage (Vcc2) range from 4.75 to 5.25 V.
Brightness is controlled by a switch (SW1 ~ SW3) that provides total brightness control of color.
