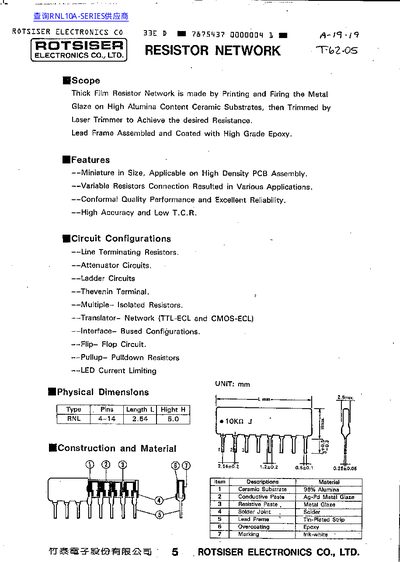

This document is a technical datasheet for the ROTSISER RNL10A Series Thick Film Resistor Network. The components are manufactured by printing and firing metal glaze on high alumina ceramic substrates and are assembled with lead frames coated in epoxy.
The datasheet provides detailed ratings including power dissipation, resistance ranges, tolerances, and operating temperature limits. It also lists various circuit configurations such as line terminating resistors, attenuator circuits, ladder circuits, and Thevenin terminals.
| Per-Resistor rated Power | 0.125 W |
|---|---|
| Nominal Resistance Range | 10 ohm-1 Mohm |
| Nominal Resistance Tolerance | +/-1%, 2% ,5% |
| Operating Temperature Range | -40 to +150 Deg.s C |
| Maximum Working Voltage | 100 V |
The ceramic substrate contains 96% Alumina.
Available tolerances include +/-1%, 2%, and 5%.
