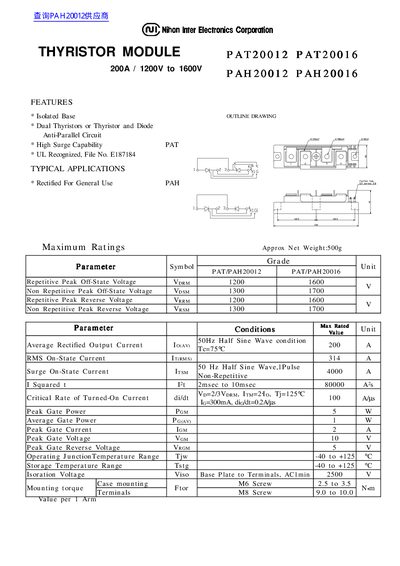

Nihon Inter Electronics PAT20012/PAT20016/PAH20012/PAH20016 Thyristor Module Datasheet

PAT20012 and PAT20016 are dual thyristor modules. The main features are isolated base, dual thyristors or thyristor and diode anti-parallel circuit, high surge capability, UL recognized, suitable for general rectification applications

Brand: THYRISTOR
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 254 KB
Published: 06 June, 2012
Updated: 01 October, 2023
MD5 checksum: A76A294E3821D9A71F1060E011EDD829
PDF: Nihon Inter Electronics PAT20012/PAT20016/PAH20012/PAH20016 Thyristor Module Datasheet PDF

About this manual

This document is a technical datasheet for the PAT/PAH series of Thyristor Modules manufactured by Nihon Inter Electronics Corporation. The devices feature an isolated base design suitable for dual thyristors or anti-parallel circuits, with voltage ratings ranging from 1200V to 1600V and a maximum average rectified output current of 200A per arm.

What's inside

Features
Maximum Ratings
Electrical Characteristics
Thermal Characteristics
Outline Drawing
Typical Applications

Specifications

Repetitive Peak Off-State Voltage	1200 V / 1600 V
Non Repetitive Peak Off-State Voltage	1300 V / 1700 V
Surge On-State Current (per arm)	4000 A
Peak Gate Power	5 W
Operating Junction Temperature Range	-40 to +125 C

Frequently asked questions

What are the typical applications for these modules?

They are rectified for general use.

Is this product UL recognized?

Yes, it is UL Recognized with File No. E187184.

What is the isolation voltage between base plate and terminals?

The minimum isolation voltage is 2500 V AC.
