This product is a wireless transceiver module that supports 434.075, 868.40 and 914.5 MHz frequencies. It features double RF filtering, high accuracy RF crystal, -112 dBm receiver sensitivity and more

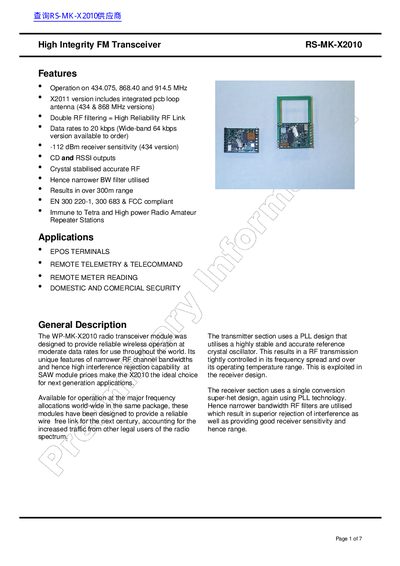

The Round Solutions WP-MK-X2010 is a radio transceiver module designed to provide reliable wireless operation at moderate data rates. It features crystal-stabilized accurate RF transmission and a single conversion super-het receiver design with PLL technology for superior interference rejection.
Available in versions operating on 434.075, 868.40, and 914.5 MHz, the module offers data rates up to 20 kbps (with a wide-band 64 kbps version available). It includes CD and RSSI outputs and is compliant with EN 300 220-1, 300 683, and FCC regulations.
| Operating temperature | -20°C to +55°C |
|---|---|
| Supply Voltage | 4.5V to 5.5V |
| Data Bitrate | 50 to 20,000 bps |
| RF power out (transmitter) | 1 mW |
The module is available for operation on 434.075, 868.40, and 914.5 MHz.
The standard version supports data rates up to 20 kbps.
The module complies with EN 300 220-1, 300 683 & FCC.
