WIW1036 (3323) Trimmer Potentiometer

6mm single-turn potentiometers have Cermet / Industrial / Sealed characteristics, top and side adjustment types (P / U / W / S are most popular)

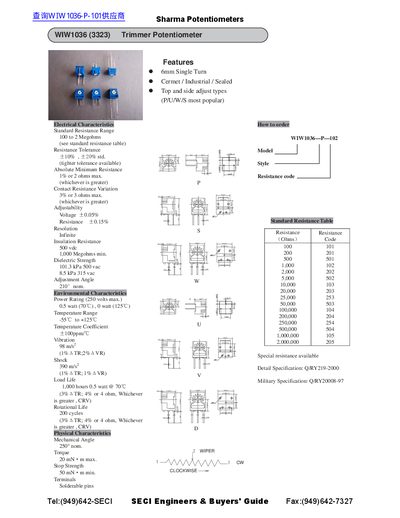

WIW1036 (3323) Trimmer Potentiometer - cover page
Brand
WIW1036
Category
Potentiometer
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
464 KB
Published
06 June, 2012
Updated
30 September, 2023
MD5 checksum
BF7D650B2BFBCA6922EC720F201ED9E3
PDF
WIW1036 (3323) Trimmer Potentiometer PDF

About this manual

The Sharma Potentiometers WIW1036 (3323) is a 6mm single-turn trimmer potentiometer featuring Cermet construction. It offers both top and side adjustment styles, with the P/U/W/S types being the most popular options.

Electrical characteristics include a standard resistance range of 100 to 2 Megohms with tolerances of +10% or +20%. The device supports a maximum voltage of 250 volts and operates within a temperature range of -55°C to +125°C.

What's inside

  • Features
  • Electrical Characteristics
  • Standard Resistance Range
  • Environmental Characteristics
  • Physical Characteristics

Specifications

Type6mm Single Turn Cermet / Industrial / Sealed
Adjustment TypesTop and side adjust types (P/U/W/S)
Resistance Range100 to 2 Megohms
Resistance Tolerance+10% or +20%
Mechanical Angle250° nom.

Frequently asked questions

What are the available adjustment styles for this potentiometer?

The device offers both top and side adjust types, with P/U/W/S being the most popular.

What is the standard resistance range?

The standard resistance range covers 100 to 2 Megohms.
