NIC COMPONENTS CORP.'s NACC series surface mount aluminum electrolytic capacitors feature a cylindrical V-chip construction for surface mount. These capacitors have high temperature, extended life (5000 hours @ 105°C) and are available in 4x6.1mm to 10x10.5mm case sizes. These capacitors are RoHS compliant and are lead soldered with 97% Sn, 3% Bi solder.

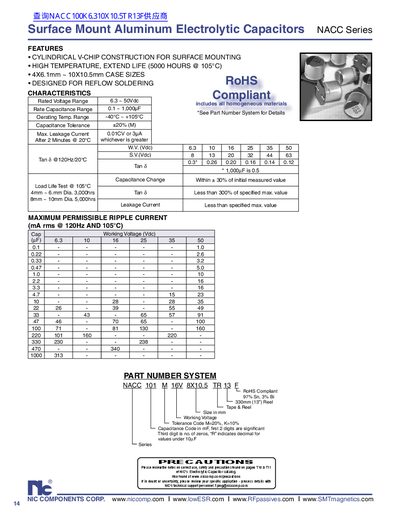

This document provides technical specifications for the NACC series of Surface Mount Aluminum Electrolytic Capacitors manufactured by NIC Components Corp. The components feature cylindrical V-chip construction designed for surface mounting with high-temperature capabilities up to 105°C and a rated life of 5,000 hours at that temperature.
The datasheet details the operating characteristics including capacitance tolerance, leakage current limits, and maximum permissible ripple current across various working voltages. It also includes a standard products table listing case sizes for different capacitances and voltage ratings, along with precise mechanical dimensions and reflow soldering profiles.
| Operating Temperature Range | -40°C ~ +105°C |
|---|---|
| Rated Life @ 105°C | 5,000 Hours |
| Capacitance Tolerance | +20% (M) |
| RoHS Compliance | Yes |
The capacitors are rated for an operating temperature range of -40°C to +105°C.
They have a high-temperature life rating of 5,000 hours when operated at 105°C.
