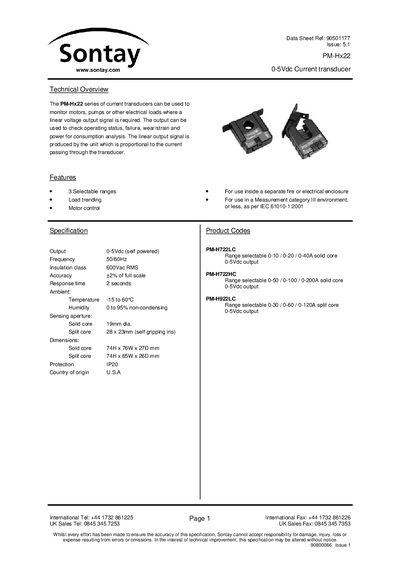

The PM-Hx22 series of current transducers can be used to monitor motors, pumps or other electrical loads where a linear voltage output signal is required. The output can be used to check operating status, failure, wear/strain and power for consumption analysis. The linear output signal is produced by the unit which is proportional to the current passing through the transducer.
The Sontay PM-Hx22 is a self-powered current transducer designed to monitor motors, pumps, or other electrical loads by producing a linear voltage output signal proportional to the passing current. It features selectable ranges and is suitable for use in hazardous environments up to 600Vac RMS.
| Output | 0-5Vdc (self powered) |
|---|
Yes, it is designed for use inside a separate fire or electrical enclosure and in Measurement category III environments.
The series offers three selectable ranges, such as 0-10/0-20/0-40A for solid core models and 0-30/0-60/0-120A for split core models.
