ASRock A790GXH/128M Motherboard User Manual

This manual introduces the features and functions of the A790GXH/128M motherboard.

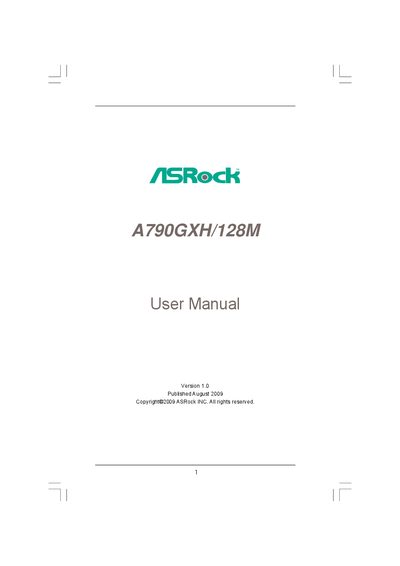

ASRock A790GXH/128M Motherboard User Manual - cover page
Brand
ASRCOK
Category
Motherboard
Document type
User Manual
Language
English
Pages
66
File format
PDF
File size
999 KB
Published
06 June, 2012
Updated
30 September, 2023
MD5 checksum
C41C56C660E730E902A8C0DE15637196
PDF
ASRock A790GXH/128M Motherboard User Manual PDF

About this manual

This document is the official user manual for the ASRock A790GXH/128M ATX form factor motherboard. It provides step-by-step instructions for installing the CPU, memory modules, and expansion slots, as well as configuring onboard headers and connectors.

The guide also details how to set up the BIOS utility, install operating systems including Windows XP and Vista with or without RAID functions, and utilize unique features such as Untied Overclocking Technology and ASRock Instant Flash.

What's inside

  • Package Contents
  • Specifications
  • Motherboard Layout
  • CPU Installation
  • Installation of Memory Modules
  • Expansion Slots Setup
  • BIOS Setup Utility
  • Operating System Installation
  • Untied Overclocking Technology
  • Support CD Information

Specifications

Form FactorATX Form Factor: 12.0-in x 8.4-in, 30.5 cm x 21.3 cm
CPU Socket SupportSocket AM2+ / AM2 and AM3 processors
Chipset NorthbridgeAMD 790GX
Chipset SouthbridgeAMD SB750
Graphics OutputD-Sub, DVI-D and HDMI
LAN Speed10/100/1000 Mb/s

Frequently asked questions

What operating systems are supported?

The motherboard supports Microsoft Windows XP, XP Media Center, XP 64-bit, Vista, and Vista 64-bit.

Does the motherboard support RAID?

Yes, the Serial ATAII connectors support RAID configurations including RAID 0, RAID 1, RAID 5, RAID10 and JBOD.

What is the maximum CPU power supported?

The motherboard supports CPUs up to 140W.

Download PDF (999 KB)
