Leach International FD400 Hermetic Relay Datasheet

This document is the technical manual for FD400, which details the features and characteristics of this product, including product dimensions, weight, power, working voltage, etc.

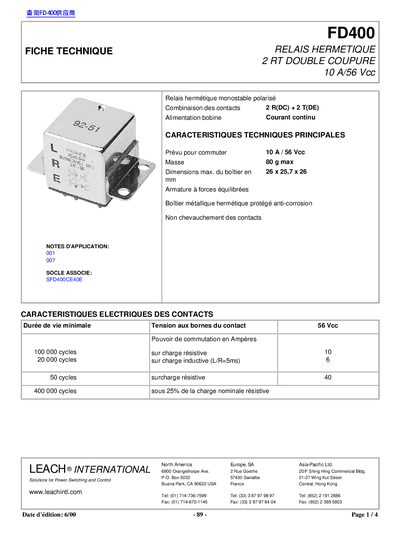

Leach International FD400 Hermetic Relay Datasheet - cover page
Brand
FICHE
Category
Other Electronics
Document type
Datasheet
Language
French
Pages
10
File format
PDF
File size
350 KB
Published
06 June, 2012
Updated
30 September, 2023
MD5 checksum
535F76944B9EDB182A1EACCD190CB9D0
PDF
Leach International FD400 Hermetic Relay Datasheet PDF

About this manual

This document is a technical datasheet for the Leach International FD400 series of hermetically sealed relays. It specifies that these are monostable polarized relays with a 2R(DC)+2T(DE) contact combination, designed to switch up to 10A at 56V DC. This manual is written in French.

What's inside

  • Caracteristiques Techniques Principales
  • Caracteristiques Electriques des Contacts
  • Caracteristiques des Bobines
  • Systeme de References
  • Note d'application N*001
  • Dispositifs Decretage pour Relais

Specifications

Contact Combination2R(DC)+2T(DE)
Rated Current/Voltage10 A / 56 V DC
Max Mass80 g
Operating Temperature Range-65°C to +125°C
Min. Contact Life (Resistive)100,000 cycles

Frequently asked questions

What is the associated socket for the FD400?

The associated socket is SFD400CE40E.

Is a diode snubber recommended for high-power relays?

No, using only a diode is prohibited for power relays with polarizing magnets due to excessive opening time.
