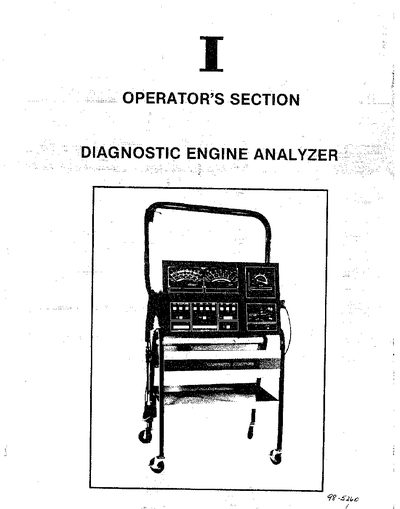

The document provides a comprehensive guide for operating the Kal-Equip G8-50 Diagnostic Engine Analyzer. It begins with critical safety warnings regarding battery handling, open flames, and radiator pressure before detailing preliminary inspection steps.
The manual describes the equipment's features, such as its ability to work on 1 through 15 cylinder engines using inductive hook-ups and magnetic probes. It outlines specific test sequences including Cranking Volts/Amps, Charging Volts-Amps, Dwell tests, Strobe Timing, and Magnetic Timing for diesel RPM.
| Engine Cylinders Supported | 1 through 15 cylinders |
|---|---|
| Cycle Types Supported | 2 and 4 cycle |
Never smoke or allow any other open flame to come within 25 feet of the battery.
The vehicle's engine must always be turned OFF when connecting or disconnecting any and all test equipment.
An error light on the left meter in Dwell mode will blink at a uniform rate.
