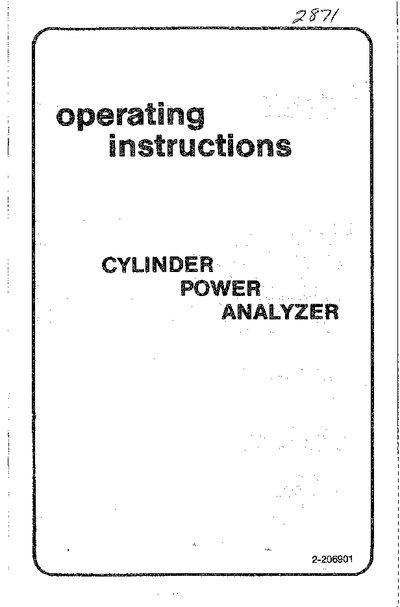

This manual provides operating instructions for the Kal Equip Company 2-206901 Cylinder Power Analyzer. The device is designed to pinpoint cylinders not contributing to overall engine performance by dropping them out of the firing order and observing RPM decreases. It also allows users to adjust carburetor balance on V-type engines.
This instrument is designed to be used on vehicles with 12 volt electrical systems and resistive ignition wire only.
You can determine the firing order by visualizing a line through the vacuum line and across the cap to see rotor rotation, then tracing spark plug wires from the distributor cap.
