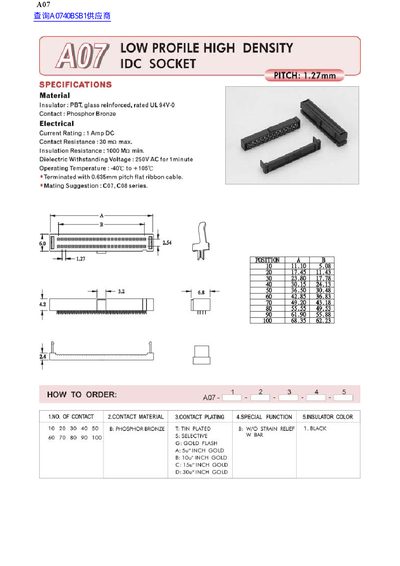

This document provides technical details for the A07 Low Profile High Density IDC Socket, which features a 1.27mm pitch and is terminated with a 0.635mm pitch flat ribbon cable. The insulator is made of PBT (glass reinforced) rated UL 94V-0, while the contacts are phosphor bronze.
| Pitch | 1.27mm |
|---|---|
| Insulator Material | PBT, glass reinforced |
| Contact Material | Phosphor Bronze |
| Current Rating | 1 Amp DC |
| Operating Temperature | -40°C to +105°C |
The document suggests mating with CO7 or C08 series.
It is terminated with a 0.635mm pitch flat ribbon cable.
