This document describes the features and characteristics of Ohmite Mfg. Co.'s K, R, S, V, and X series R.F. molded chokes.

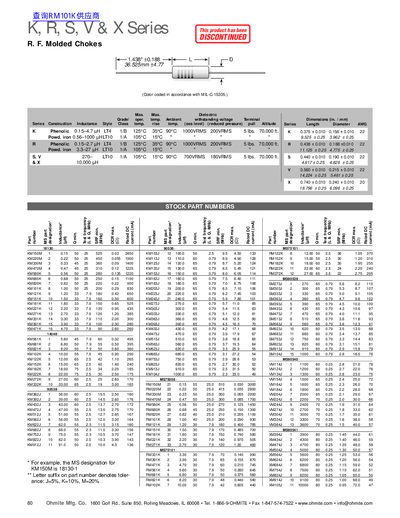

This document is a technical datasheet for the Ohmite VX Series of R.F. Molded Chokes. It provides detailed electrical and physical specifications for various models within the series.
The datasheet includes a comprehensive list of stock part numbers with their corresponding inductance values, temperature ratings, and terminal dimensions. It also explains the meaning of letter suffixes used to denote tolerance levels.
| Max Operating Temp | 125°C (Series K, R, S) |
|---|---|
| Dielectric Withstanding Voltage | 1000VRMS |
| Max Ambient Temp Rise | 35°C |
The letter suffix on a part number denotes tolerance, where J=±5%, K=±10%, and M=±20%.
