The product is an optical fixed attenuator, the feature is that it has a user-friendly push-pull mechanism, the attenuation is guaranteed over a wide bandwidth of 1310±30nm and 1510-1620nm, and the maximum input power is 200mW

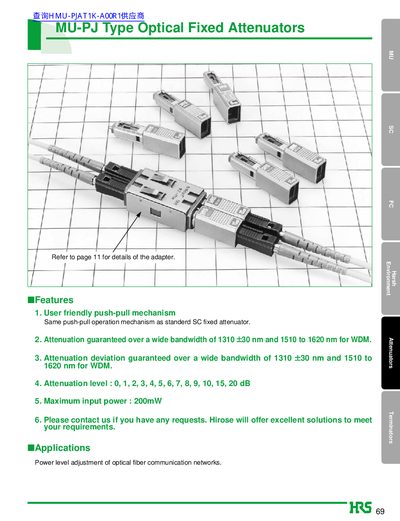

This document describes the MU-PJ Type Optical Fixed Attenuators manufactured by Hirose. These devices are designed for power level adjustment in optical fiber communication networks, featuring a user-friendly push-pull mechanism compatible with standard SC fixed attenuators.
The leaflet provides detailed technical ratings including operating temperature ranges, maximum input power of 200mW, and attenuation specifications across wavelengths of 1310nm and 1510-1620nm. It also lists specific part numbers corresponding to various attenuation levels from 0dB to 20dB.
| Maximum Input Power | 200 mW |
|---|---|
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Fiber Type | SM |
| Wavelength Bandwidth 1 | 1310 +30 nm |
| Wavelength Bandwidth 2 | 1510 to 1620 nm |
| Body Material | Zinc alloy |
| Ferrule Material | Zirconia |
The maximum input power is 200mW.
It supports a wide bandwidth of 1310 +30 nm and 1510 to 1620 nm for WDM.
The body is made of Zinc alloy and the ferrule is made of Zirconia.
