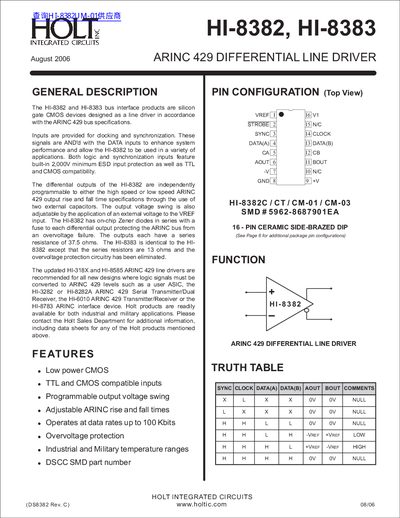

The HI-8382 and HI-8383 are silicon gate CMOS devices designed as a line driver in accordance with the ARINC 429 bus specifications. Inputs are provided for clocking and synchronization. These signals are AND'd with the DATA inputs to enhance system performance and allow the HI-8382 to be used in a variety of applications. Both logic and synchronization inputs feature built-in 2,000V minimum ESD input protection as well as TTL and CMOS compatibility. The differential outputs of the HI-8382 are independently programmable to either the high speed or low speed ARINC 429 output rise and fall time specifications through the use of two external capacitors. The output voltage swing is also adjustable by the application of an external voltage to the VREF input. The HI-8382 has on-chip Zener diodes in series with a fuse to each differential output protecting the ARINC bus from an overvoltage failure. The outputs each have a series resistance of 37.5 ohms. The HI-8383 is identical to the HI- 8382 except that the series resistors are 13 ohms and the overvoltage protection circuitry has been eliminated. The updated HI-318X and HI-8585 ARINC 429 line drivers are recommended for all new designs where logic signals must be converted to ARINC 429 levels such as a user ASIC, the HI-3282 or HI-8282A ARINC 429 Serial Transmitter/Dual Receiver, the HI-6010 ARINC 429 Transmitter/Receiver or the HI-8783 ARINC interface device. Holt products are readily available.
The HI-8382 and HI-8383 are integrated circuit products designed to function as differential line drivers in accordance with the ARINC 429 bus standards. These devices feature TTL and CMOS compatible inputs, programmable output voltage swing, and adjustable rise and fall times for high or low-speed data rates up to 100 Kbits.
| Data Rate | up to 100 Kbits |
|---|---|
| Operating Temperature Range (Industrial) | -40 to +85 C |
| Operating Temperature Range (Military) | -55 to +125 C |
| Series Resistance (HI-8382) | 37.5 ohms |
| Series Resistance (HI-8383) | 13 ohms |
| Driver Output Impedance | 75 ohms |
The HI-8383 has 13 ohm series resistors instead of 37.5 ohms, and it lacks the overvoltage protection circuitry found in the HI-8382.
Three power supplies are typically needed: +15V, -15V, and +5V.
The output voltage swing is adjustable by applying an external voltage to the VREF input.
