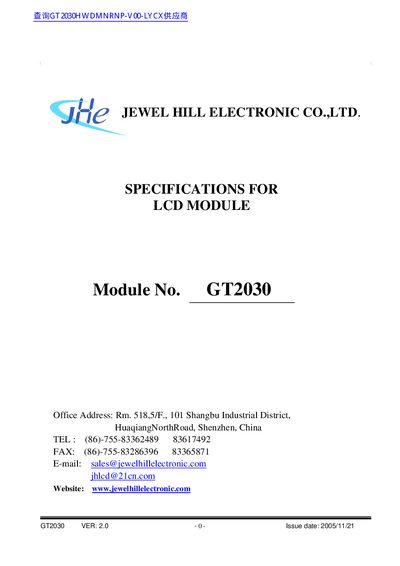

This file provides the specifications for JEWEL HILL ELECTRONIC CO.,LTD.'s GT2030 LCD module.
This document provides a comprehensive technical datasheet for the GT2030, a 128 x 64 dot graphic LCD module manufactured by Jewel Hill Electronic Co., Ltd. The module features an FSTN (Film Super Twisted Nematic) display with transflective and positive modes, suitable for various industrial applications requiring clear visibility in different lighting conditions.
The datasheet details the mechanical specifications, including dimensions of 60.2 x 43.74/42.5 x 6.8 mm, and electrical characteristics such as a supply voltage of 3.3V and operating temperature range from -20°C to +70°C. It also covers pin descriptions for the 18-pin interface, timing parameters for read/write operations compatible with 8080 series MPUs, and electro-optical performance metrics.
| Display Format | Graphic 128x64 dots |
|---|---|
| Duty Cycle | 1/65 |
| Bias Ratio | 1/9 |
| Supply Voltage (Logic) | 3.3V |
| LCD Driving Voltage | 8.5V |
| Operating Temperature | -20 to +70 Cc |
| Storage Temperature | -30 to +80 Cc |
The module has a resolution of 128 segments by 64 commons dots.
Yes, it includes an ILED (Yellow-Green) backlight.
