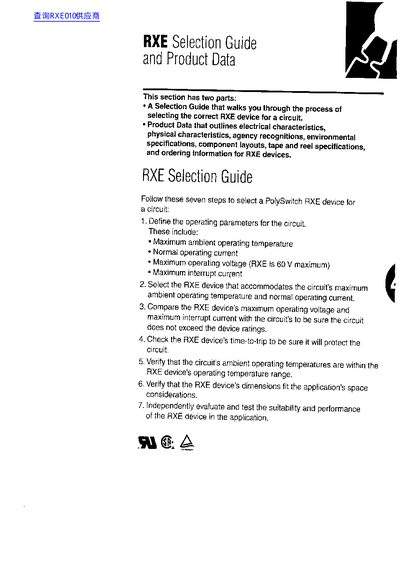

This document serves as a comprehensive resource for selecting the correct PolySwitch RXE device for specific circuit applications. It outlines a seven-step process to define operating parameters such as ambient temperature, normal current, maximum voltage (60 V), and interrupt current. The guide includes tables to match these parameters with the appropriate part number.
| Maximum operating voltage | 60 V |
|---|---|
| Operating temperature range | -40°C to 85°C |
| Maximum surface temperature (tripped) | 125°C |
| Insulating material rating | UL 94V-0 |
The maximum operating voltage for all listed RXE devices is 60 V.
The chart shows the typical time-to-trip at 20°C for each PolySwitch RXE device.
Yes, kinked leads are available for devices from RXE110 to RXE375.
