Marlow Industries RC6-8 Thermoelectric Cooler Product Data Sheet

This document introduces the thermoelectric cooler RC6-8 produced by Marlow Industries subsidiary. The cooler is RoHS 2002/95/EC compliant and features solid-state reliability, high temperature resistance, superior nickel diffusion barriers, etc. It is suitable for rugged environments.

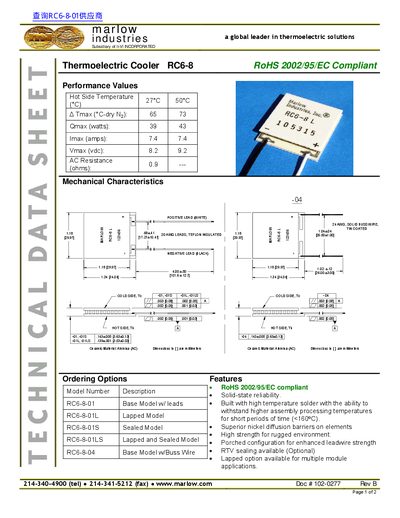

Marlow Industries RC6-8 Thermoelectric Cooler Product Data Sheet - cover page
Brand
Marlow
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
145 KB
Published
05 June, 2012
Updated
29 September, 2023
MD5 checksum
6907A182A947511CD9FF421A4D37BE04
PDF
Marlow Industries RC6-8 Thermoelectric Cooler Product Data Sheet PDF

About this manual

This document is a product data sheet for the Marlow Industries RC6-8 Thermoelectric Cooler. It lists key performance metrics such as maximum heat load (Qmax), current (Imax), voltage (Vmax), and resistance at hot side temperatures of 7°C and 50°C.

What's inside

  • Performance Values
  • Mechanical Characteristics
  • Ordering Options
  • Features
  • Installation
  • Operation Cautions

Specifications

Hot Side Temperature (Test Condition)7C and 50°C
Maximum Current74 amps
Maximum Voltage at 7°C8.2 VDC
Ceramic MaterialAlumina (AC)
Lead Wire Gauge20 AWG

Frequently asked questions

Is the Marlow Industries RC6-8 RoHS compliant?

Yes, the product is stated to be RoHS 2002/95/EC compliant.

What is the recommended method for mounting the cooler?

The document recommends bonding with thermal epoxy or soldering with metallized ceramics.
