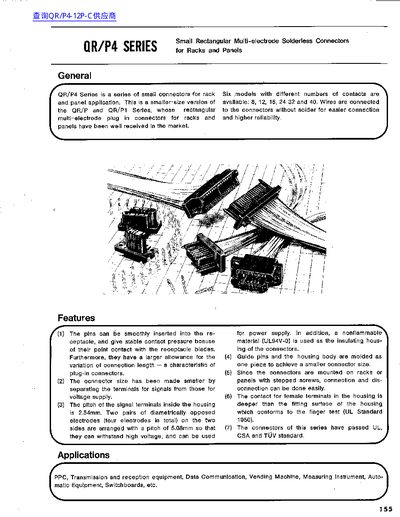

The document describes the features and characteristics of the QR/P4-12P-C supplier's product.
The QR/P4 Series consists of small rectangular multi-electrode solderless connectors intended for use in racks and panels. This series offers a smaller size compared to previous models while maintaining high reliability through wire connections without soldering. The design separates signal terminals from voltage supply terminals, with a pitch of 2.54mm for signals and 5.08mm for power electrodes to withstand high voltage.
| Pitch (Signal) | 2.54mm |
|---|---|
| Insulation Resistance | Min. 5000MΩ at DC500V |
| Operating Temperature | -10~+60°C |
| Rated Voltage (Power) | AC 300V |
Six models with different numbers of contacts are available: 8, 12, 16, 24, 32 and 40.
The insulating housing is made of PBT resin with a UL94V-0 rating.
The connectors have passed UL, CSA and TUV standard.
