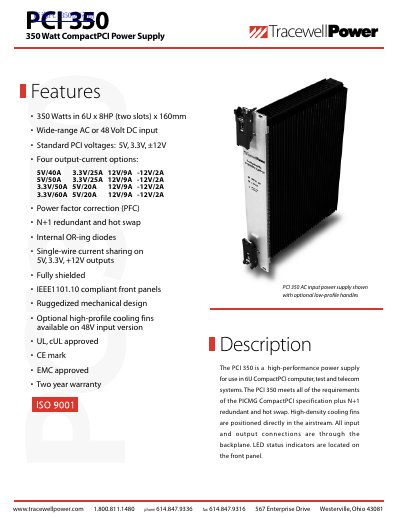

The PCI 350 is a high-performance power supply for use in 6U CompactPCI computer, test and telecom systems. The PCI 350 meets all of the requirements of the PICMG CompactPCI specification plus N+1 redundant and hot swap. High-density cooling fins are positioned directly in the airstream. All input and output connections are through the backplane. LED status indicators are located on the front panel.
The Tracewell Power PCI 350 is a high-performance 350 Watt CompactPCI power supply designed for use in 6U computer, test, and telecom systems. It meets all requirements of the PICMG CompactPCI specification and supports N+1 redundant operation with hot-swap functionality.
| Output Power (AC/DC) | 350 Watts max |
|---|---|
| Input Voltage Range | 100-240 Vac, 48 Vdc |
| Power Factor | 0.99 typical |
| Efficiency (AC) | 65% min |
| Operating Temperature | -20°C to 50°C |
Yes, it supports full power N+1 redundant and hot-swap.
Standard voltages include 5V, 3.3V, ±12V with various current ratings.
