NIC COMPONENTS CORPORATION SIP RESISTOR NETWORKS features CERMET thick film construction, low profile 5mm, wide range of resistance values, economical pricing, 4 pins to 13 pins available, 6 circuit types.

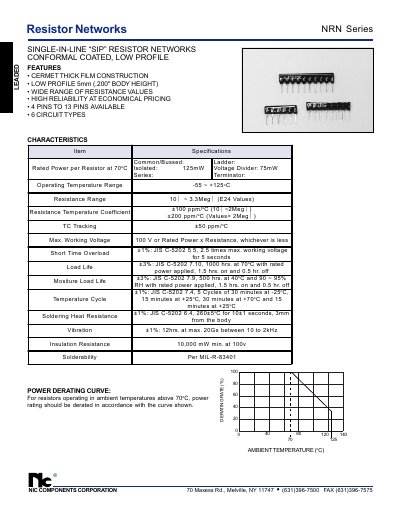

This document provides technical specifications for the NIC Components Corporation NRN Series, which consists of leded, single-in-line (SIP) resistor networks. These components feature a conformal coated, low-profile 5mm body height and utilize cermet thick film construction for high reliability at economical pricing.
| Rated Power per Resistor at 70°C (Common/Bussed) | 125mW |
|---|---|
| Operating Temperature Range | -55 ~ +125°C |
| Resistance Range | 10Ω ~ 3.3MegΩ (E24 Values) |
| Body Height | 5mm (.200") |
The product has a low profile with a body height of 5mm (.200).
The units operate within a temperature range of -55 to +125°C.
The max. working voltage is 100 V or rated power x resistance, whichever is less.
