FN 350 is a single-phase EMC/RFI filter from Schneider Electric. This filter has high component values, high attenuation power and high reliability, and is suitable for single-phase motor drive applications.

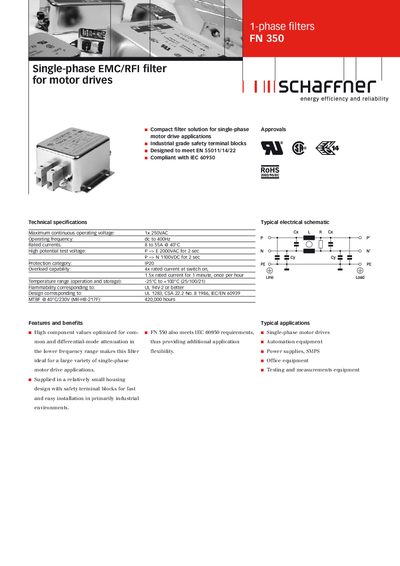

The document describes the Schaffner FN 350, a compact single-phase EMC/RFI filter specifically designed for motor drive applications. It features industrial-grade safety terminal blocks and is compliant with standards such as EN 55011/14/22 and IEC 60950.
| Maximum continuous operating voltage | 1x 250VAC |
|---|---|
| Operating frequency | dc to 400HZ |
| Rated currents | 8 to 55A @ 40°C |
| High potential test voltage P->E | 2000VAC for 2 sec |
| Protection category | IP20 |
Yes, the filter meets IEC 60950 requirements, providing additional application flexibility.
The FN 350 is a single-phase EMC/RFI filter intended specifically for motor drive applications.
The unit supports a maximum continuous operating voltage of 1x 250VAC and operates from dc to 400HZ.
