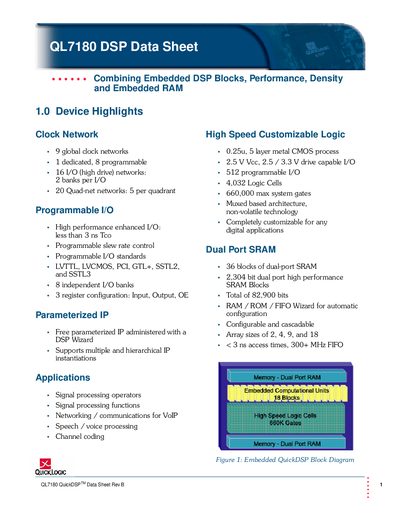

The QL7180 QuickDSPTM Data Sheet describes a product that combines embedded DSP blocks, performance, density, and embedded RAM. The product features high-performance enhanced I/O, programmable clock networks, parameterized IP, and more. It is suitable for signal processing operators, networking/communications, speech/voice processing, and other applications.
The QuickLogic QL7180 is a customizable digital device combining embedded DSP blocks with performance and density. It features 4,032 Logic Cells capable of up to 660,000 system gates and supports multiple programmable I/O standards including LVTTL, LVCMOS, PCI, GTL+, SSTL2, and SSTL3.
The device includes 36 blocks of dual-port SRAM with total capacity of 82,900 bits and access times under 8ns. It also offers 9 global clock networks (1 dedicated and 8 programmable) and parameterized IP administered via a DSP Wizard for applications in signal processing, networking, and voice processing.
| Logic Cells | 4,032 |
|---|---|
| Max System Gates | 660,000 |
| I/O Banks | 8 independent I/O banks |
| SRAM Blocks | 36 blocks of dual-port SRAM |
| Total SRAM Bits | 82,900 bits |
| RAM Access Time | <8ns |
The device supports LVTTL, LVCMOS, PCI, GTL+, SSTL2, and SSTL3.
There are 9 global clock networks in total: 1 dedicated and 8 programmable.
