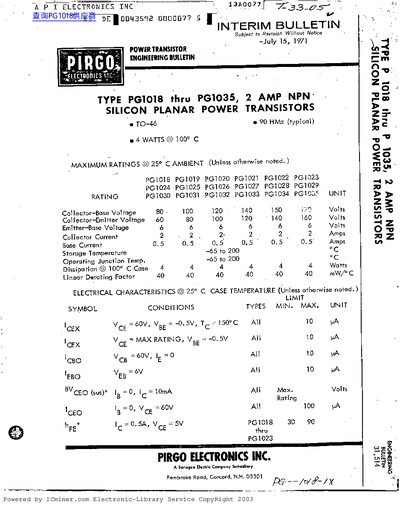

This document is an Interim Engineering Bulletin from July 15, 1971, published by APT Electronics Inc., a subsidiary of Sprague Electric Company. It details the specifications for TYPE PG1018 through PG1035, which are 2 Amp NPN Silicon Planar Power Transistors packaged in TO-46 cases.
The bulletin provides maximum ratings at 25°C ambient temperature and electrical characteristics measured at 25°C case temperature. Key parameters include collector-base voltage ranging from 80 to 150 Volts, a constant collector current of 2 Amps across the series, and operating junction temperatures between -65°C and 200°C.
| Package Type | TO-46 |
|---|---|
| Transistor Type | NPN Silicon Planar Power Transistors |
| Collector Current | 2 Amps |
| Operating Junction Temperature Range | -65 to 200 °C |
| Dissipation @ 100° C Case | 4 Watts |
The maximum collector current rating is 2 Amps.
The transistors operate within a junction temperature range of -65 to 200 °C.
