Jauch Quartz GmbH is a company that produces oscillators, VCXOs, and 3.3V voltage supplies. The document provides detailed information about product specifications and ordering.

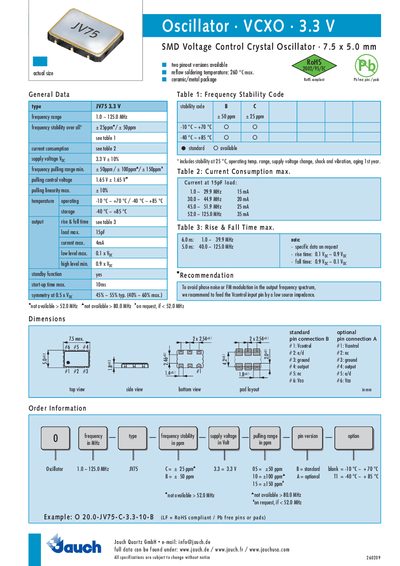

This document is a technical datasheet for the Jauch JV75 series of SMD voltage control crystal oscillators (VCXOs). These devices are designed with a ceramic or metal package and operate on a supply voltage of 3.3 V +/- 10%. The oscillators cover a frequency range from 1.0 MHz to 125.0 MHz.
| Supply Voltage | 3.3 V +/- 10% |
|---|---|
| Frequency Range | 1.0 ~ 125.0 MHz |
| Current Consumption (1.0-29.9 MHz) | 15 mA |
| Current Consumption (45.0-51.9 MHz) | 25 mA |
| Rise Time Max. | 6.0ns (1.0-39.9 MHz) |
| Fall Time Max. | 5.0ns (40.0-125.0 MHz) |
The maximum reflow soldering temperature is 260 °C.
Yes, the device is RoHS compliant and Pb free.
