MDE Semiconductor, Inc. 7mm Disc Metal Oxide Varistors Standard D Series datasheet provides product information, such as features, specifications and ordering information.

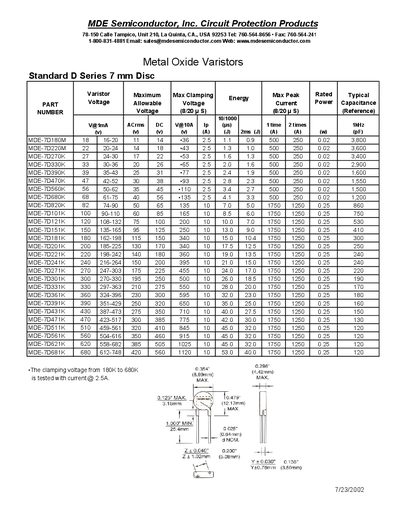

This document is a product datasheet for the MDE-7D series of standard 7 mm disc Metal Oxide Varistors (MOV). It provides detailed electrical parameters including rated voltage, maximum allowable voltage, clamping energy, peak current, power rating, and capacitance values for various part numbers ranging from MDE-7D180M to MDE-7D681K.
The document also includes dimensional drawings specifying the physical size of the varistors, noting a diameter of 0.296 inches (approximately 7.5mm) and a height of 0.125 inches maximum.
| Series Name | Standard D Series 7 mm Disc |
|---|
The standard D Series Metal Oxide Varistors have a disc diameter of 7 mm.
The document states a minimum dimension of 1.000 inch.
