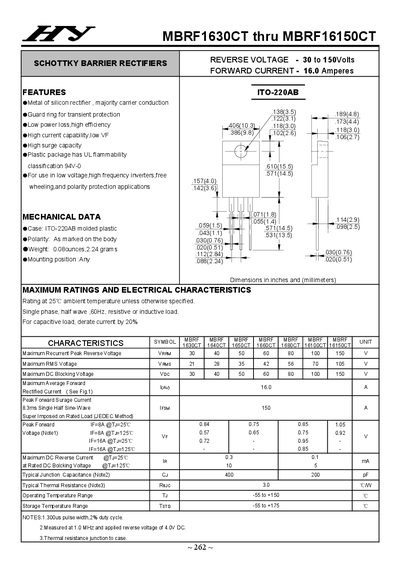

This document is about the specifications of MBRF 1630CT 1640CT 1650CT 1660CT 1680CT 16100CT 16150CT , the main parameters include maximum recurrent peak reverse voltage, maximum AC voltage, maximum DC blocking voltage, maximum average DC current, peak forward surge current, maximum DC reverse current, typical junction capacitance and typical thermal resistance.
This document provides technical specifications for the HY MBRF1630CT through MBRF16150CT Schottky Barrier Rectifier series. Key features include a metal of silicon construction with guard ring protection, low power loss, high current capability, and a plastic package with UL 94V-0 flammability classification.
The datasheet details maximum ratings such as forward current up to 16.0 Amperes and reverse voltages ranging from 30 to 150 Volts. It also includes electrical characteristics like peak forward surge current, typical junction capacitance, thermal resistance, and operating temperature ranges from -55°C to +150°C.
| Package Type | ITO-220AB molded plastic |
|---|---|
| Peak Forward Surge Current (8.3ms) | 150 A |
| Operating Temperature Range | -55 to +150 C |
| Storage Temperature Range | -55 to +175 c |
The typical thermal resistance (junction to case) is 3.0 °C/W.
These devices are intended for use in low voltage, high frequency inverters, free wheeling, and polarity protection applications.
