Specification table of MB3216 series coils, including impedance, resistance, current and other parameters.

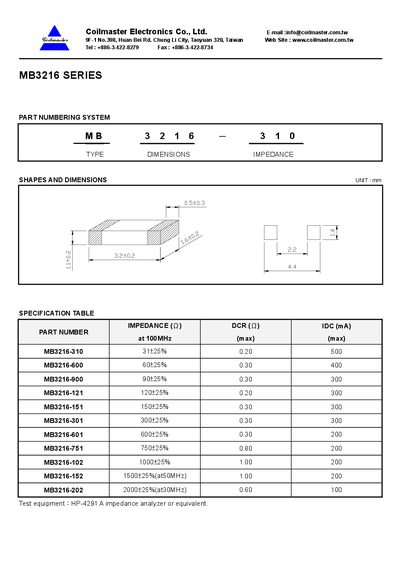

This document provides technical data for the Coilmaster MB3216 Series of inductors. It includes a part numbering system guide and a specification table listing impedance, DCR, and IDC values for various models.
The datasheet also presents graphical representations of impedance versus frequency for specific parts and outlines packaging specifications for reel sizes of 178mm and 330mm.
| Test Equipment | HP-4291 A impedance analyzer or equivalent. |
|---|
A reel contains either 3,000 pieces or 10,000 pieces depending on the type.
