This product is a yellow high flux LED designed for high current operation and high flux output application. It features high flux output and high luminance, designed for high current operation, uniform color, low profile and low thermal resistance, packaged in tubes for use with automatic insertion equipment. It can be used for automotive tail lights, brake lights and turn signals, electronic signs and etc.

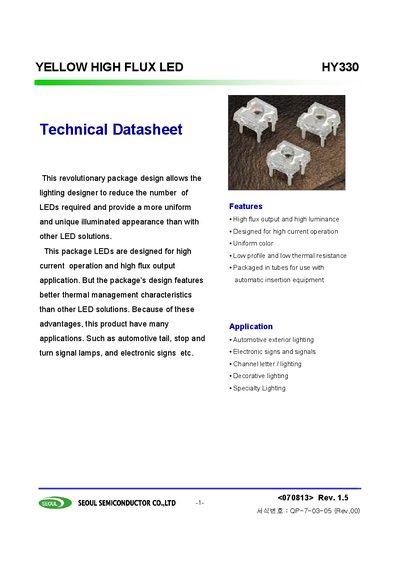

This document is a technical datasheet for the HY330 Yellow High Flux LED manufactured by Seoul Semiconductor. The package design features better thermal management characteristics than other solutions, making it suitable for high current operation and high flux output applications such as automotive tail/stop/turn signal lamps and electronic signs.
The datasheet provides comprehensive data including outline dimensions, electro-optical characteristics (luminous flux, dominant wavelength, forward voltage), absolute maximum ratings, reliability test results, characteristic diagrams, bin codes, packing information, and precautions for use regarding storage, static electricity, and heat generation.
| View Angle | 90 deg. |
|---|---|
| Thermal Resistance | 220 °C/W |
| DC Forward Current (Max) | 70 mA |
| Operating Temperature Range | -40 to 100 °C |
It is designed for automotive exterior lighting, electronic signs and signals, channel letter lighting, decorative lighting, and specialty lighting.
The maximum operating temperature is 100 °C.
