This document describes the features and characteristics of Golledge's products, including Stratum 3 compliance, HCMOS output, excellent frequency stability, wide temperature range, and low cost for volume production.

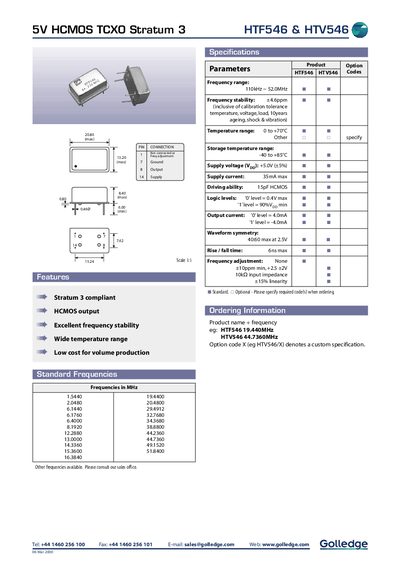

This document provides technical specifications for the Golledge HTF546 and HTV546, which are 5V HCMOS TCXOs designed to meet Stratum 3 compliance standards. Key parameters include a frequency range of 110kHz to 52.0MHz with a stability of +4.6ppm over temperature, voltage, load, aging, shock, and vibration.
| Frequency range | 110kHz ~ 52.0MHz |
|---|---|
| Frequency stability | +4.6ppm |
| Temperature range (Operating) | 0 to +70°C |
| Supply current | 35mA max |
| Driving ability | 15pF HCMOS |
Yes, these oscillators are Stratum 3 compliant.
There is no frequency adjustment available for these models.
