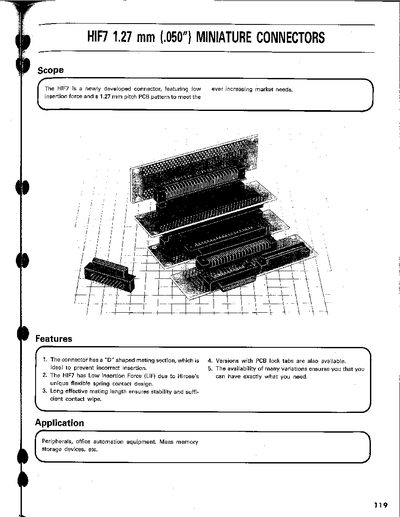

The HIF7 series is a high-density, low-insertion-force multiposition connector designed to meet the needs of continued miniaturization in the electronic industry. It features a 'D' shaped mating section for proper alignment and utilizes Hirose's unique flexible spring contact design to achieve Low Insertion Force (LIF). The connectors are available with PCB lock tabs and various termination types including right angle and straight configurations.
| Pitch / Contact Space | 1.27 mm (.050") |
|---|---|
| Voltage Rating | 125VAC |
| Withstanding Voltage | 300VAC |
| Insulator Material | PBT resin (Black) |
| Receptacle Contact Material | Phosphor bronze, Selective gold plating |
| Header Contact Material | Brass, Selective gold plating |
The connector is offered in 34, 40, 50, 60, 80, 100, and 120 positions.
The series includes Right Angle type (DS) and Straight type (DSA) terminations.
Yes, versions with PCB lock tabs are available to ensure stability during mounting.
