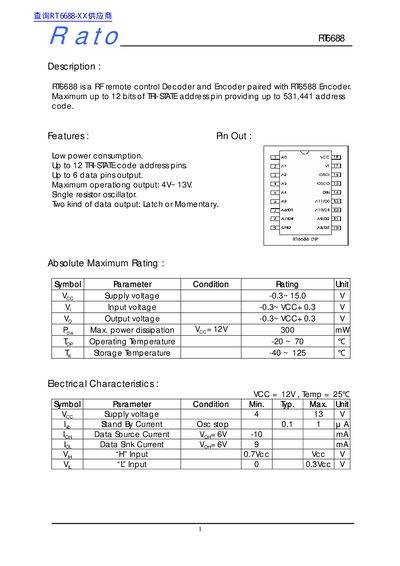

RT6688 is a RF remote control Decoder and Encoder paired with RT6588 Encoder. Maximum up to 12 bits of TRI-STATE address pin providing up to 531,441 address code.
The document describes the Rato RT6688-XX as an RF remote control Decoder and Encoder paired with the R588 Encoder. It supports a maximum of 12 bits of TR-SIATE address pins, providing up to 531,441 address codes.
| Address Pins | Up to 12 bits |
|---|---|
| Max Address Codes | 531,441 |
| Data Pins Output | Up to 6 |
| Max Operating Output Voltage | 4V ~ 13V |
| Oscillator Type | Single resistor oscillator |
| Supply Voltage (Min) | 4 V |
| Operating Temperature Range | -20 ~ 70 °C |
The absolute maximum rating for the supply voltage (VCC) is 15.0 V.
