This datasheet provides the characteristics parameters of FNL-U500XXXXSL series LED lamps, including emitting color, epoxy type, die material, wavelength, forward voltage, luminous intensity, luminous flux, viewing angle, peak wavelength, dominant wavelength, etc.

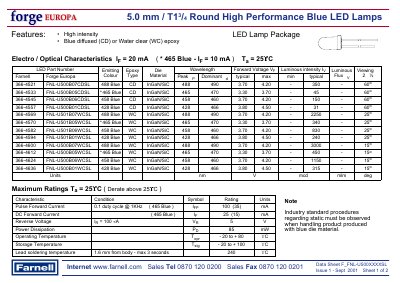

The document is a technical datasheet for the Farnell 5.0 mm / T13/4 Round High Performance Blue LED Lamps (Series 500). It lists various part numbers corresponding to different emitting colors within the blue spectrum, epoxy types (diffused or water clear), and die materials.
Key specifications include forward voltage ranges between 3.30V and 4.50V, operating temperatures from -20°C to +80°C, and storage temperatures up to +100°C. The datasheet also details maximum ratings such as pulse forward current (up to 100 mA for the 465nm variant) and reverse voltage limits.
| Operating Temperature Range | - 20 to + 80 ° C |
|---|---|
| Storage Temperature Range | - 20 to + 100 ° C |
| Reverse Voltage (IR = 100 µA) | 5V |
| Power Dissipation | 85 mW |
| Pulse Forward Current (465 Blue) | 100 mA |
The typical forward voltage ranges from 3.30V to 4.20V depending on the specific part number and wavelength.
The lamps are available with High intensity Blue diffused (CD) or Water clear (WC) epoxy.
The maximum lead soldering temperature is 240 ° C for a duration of max 3 seconds at 1.6 mm from the body.
