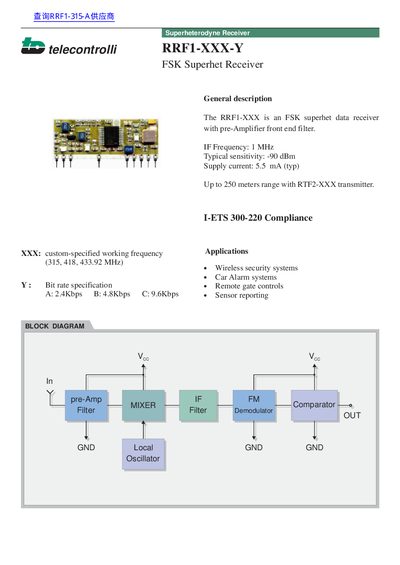

The RRF1-XXX-Y is a telecontrolli FSK superheterodyne data receiver with pre-amplifier front end filter. Typical sensitivity is -90 dBm, typical supply current is 5.5 mA (typ) and range is up to 250 meters with RTF2-XXX transmitter.
The document describes the telecontrolli RRF1-XXX-Y as an FSK superhet data receiver with a pre-Amplifier front end filter. It supports custom-specified working frequencies of 315, 418, or 433.92 MHz and bit rates ranging from 24Kbps to 9.6Kbps depending on the version.
| IF Frequency | 1 MHz |
|---|---|
| Typical sensitivity | -90 dBm |
| Supply current | 5.5 mA (typ) |
The receiver supports custom-specified working frequencies of 315, 433.92 MHz or 418 MHz.
The Y parameter specifies the bit rate as A: 24Kbps, B: 4.8Kbps, or C: 9.6Kbps.
