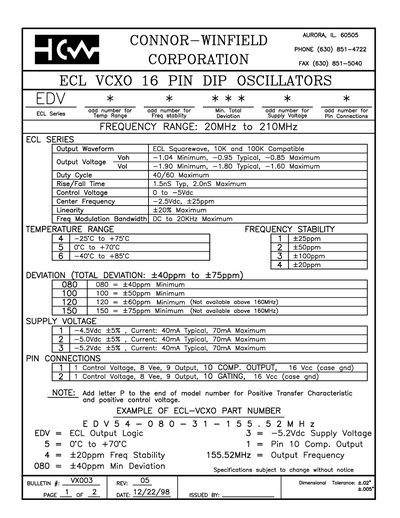

This document is a technical datasheet for the Connor-Winfield ECL VCXO 16 Pin DIP Oscillators. It provides detailed specifications including frequency stability, temperature ranges, supply voltage options, and output characteristics compatible with 10K and 100K logic levels.
The guide includes specific pin connection diagrams for control voltage, gating, and output signals, along with a test circuit setup description. It also details the part number coding system to help users select the correct model based on frequency, stability, and deviation requirements.
| Frequency Range | 20MHz to 210MHz |
|---|---|
| Output Voltage High (Voh) | -1.04V Minimum, -0.95V Typical |
| Output Voltage Low (Vol) | -1.90V Minimum, -1.80V Typical |
| Rise/Fall Time | 1.5nS Typ, 2.0nS Maximum |
| Control Voltage Range | 0 to -5Vdc |
The frequency stability is +25ppm for a temperature range of -25°C to +75°C.
Add the letter P to the end of the model number for a Positive Transfer Characteristic and positive control voltage.
