DB LECTRO Inc. is a company based in Brossard, Quebec, Canada. The document describes the features and characteristics of the products offered by the company.

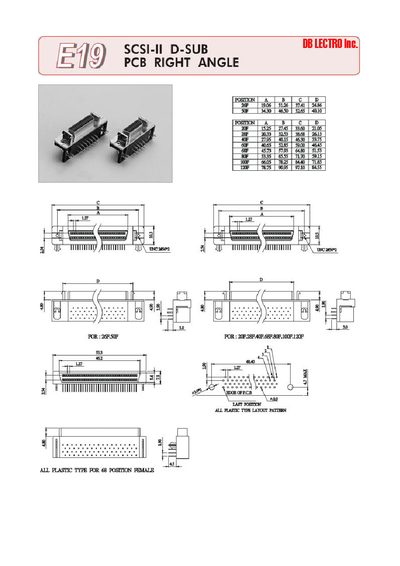

This document provides a technical overview of the DBL E19 series of right-angle SCSI-II D-sub connectors. It includes a P.C. board layout pattern with specific dimensions for various contact counts.
The datasheet details multiple configuration options for ordering, including contact count (ranging from 20 to 120), mounting methods (thread inserts or non-option), parts options like latches and plating types, shell materials, boardlock shapes, insulator colors, and specific part numbers.
| Connector Series | SCSI-II D-SUB PCB RIGHT ANGLE |
|---|---|
| Available Contact Counts | 20, 26, 28, 40, 50, 60, 68, 80, 100, 120 |
| Contact Type | Female |
| Mounting Method Options | Thread Insert 2-56 UNC, Thread Insert 4-40 UNC, Thread Insert M3, Thread Insert M2.6, Non Option |
| Shell Options | Metal Shell, All Plastic |
The contact type is Female.
Available mounting methods include thread inserts of 2-56 UNC, 4-40 UNC, M3, and M2.6 sizes, or a non-option.
The connector is available with either a metal shell or an all-plastic shell.
