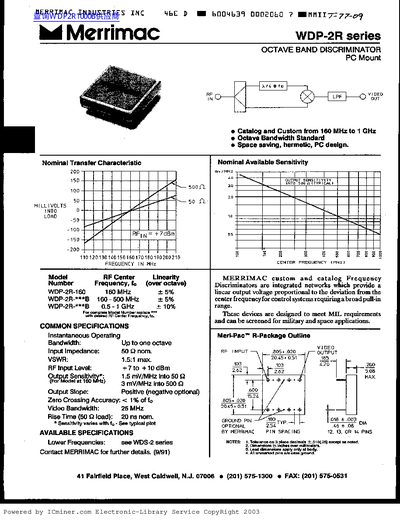

The Merrimac WDP-2R series consists of integrated networks designed as octave band discriminators. These devices provide a linear output voltage proportional to the deviation from the center frequency, suitable for control systems requiring broad pull-in ranges. They are available in both catalog and custom configurations with hermetic PC designs.
| Frequency Range | 160 MHz to 1 GHz |
|---|---|
| Bandwidth Type | Octave Bandwidth Standard |
| Design Type | Space saving, hermetic, PC design |
| Input Impedance | 50 Ohm nominal |
| VSWR | 1.5:1 max. |
| RF Input Level | +7 to +10 dBm |
| Video Bandwidth | 25 MHz |
The typical RF input level ranges from +7 to +10 dBm.
Yes, they are designed to meet MIL requirements and can be screened for military and space applications.
