OPTREX DMC16230N-APE-DY LCD Module Technical Specification

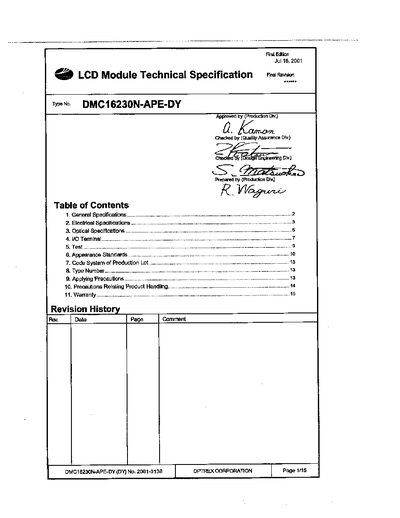

OPTREX DMC16230N-APE-DY LCD Module Technical Specification - cover page
Brand
DMC16230N-APE-DY
Document type
Datasheet
Language
English
Pages
16
File format
PDF
File size
458 KB
Published
05 June, 2012
Updated
05 June, 2012
MD5 checksum
26E90B26B0F7B029CC8C383839F00F4C
PDF
OPTREX DMC16230N-APE-DY LCD Module Technical Specification PDF

About this manual

This document is a technical specification sheet for the OPTREX DMC16230N-APE-DY, an STN (Super Twisted Nematic) neutral-mode reflective LCD module. The device features a 16-character by 2-line display format with a viewing area of 99.0(W) x 24.0(H) mm and utilizes the HD44780 compatible controller.

What's inside

  • General Specifications
  • Electrical Specifications
  • Optical Specifications
  • I/O Terminal Pin Assignment
  • System Block Diagram

Specifications

Display Format16 characters X 2 lines
LCD TypeSTN / Neutral-mode / Reflective
Viewing Area99.0 (W) * 24.0 (H) mm
Outline Dimensions122.0 (W) X 44.0 (H) X 14.0 max (D) mm
Weight60g max.
Operating Temp.min. 0°C ~ max. 50°C

Frequently asked questions

What is the supply voltage for logic?

The recommended supply voltage (Vcc-Vss) for logic is between 4.5V and 5.5V.

What are the typical response times?

The rise time is approximately 10ms and the decay time is approximately 270ms.
