This document describes the LED lamp product of China Semiconductor Corporation, including LED type, emitting color, viewing angle, power consumption, and reliability.

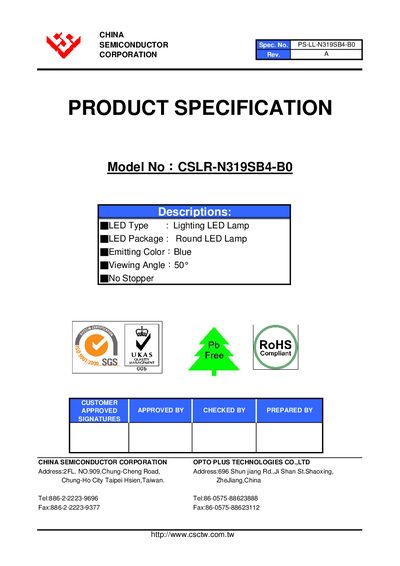

This document is a product specification datasheet for the CSLR-N319SB4-B0, a high-reliability blue emitting LED manufactured by China Semiconductor Corporation. The device features a round MBLED package with a 50-degree viewing angle and is RoHS compliant.
The datasheet provides detailed technical data including absolute maximum ratings, electro-optical characteristics such as luminous intensity and dominant wavelength, and typical electrical/optical curves. It also includes a device selection guide, package outline dimensions, and precautions for use regarding soldering and static electricity.
| Emitting Color | Blue |
|---|---|
| Package Type | Round LED Lamp (MBLED) |
| Viewing Angle | 50° |
| Forward Current (DC) | 30 mA |
| Peak Forward Current | 100 mA |
| Reverse Voltage | 5 V |
| Operating Temperature | -30 ~ +80 C |
| Dominant Wavelength (Typ) | 465 nm |
The maximum wave soldering temperature should be 260°C.
Yes, the document states it is RoHS Compliant.
