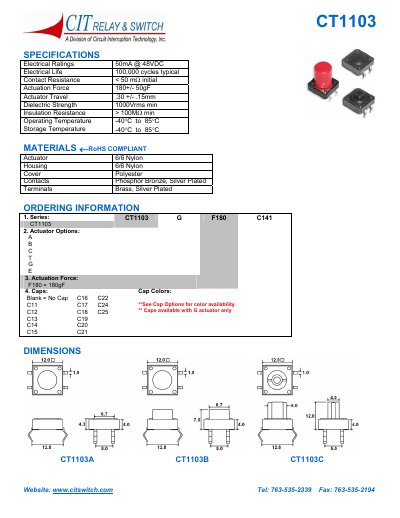

This document provides specifications and features of the CT1103 series products from CIT Switch, including electrical ratings, electrical life, contact resistance, actuation force, dielectric strength, insulation resistance, operating temperature, etc.
The CIT Switch CT1103 is an electronic switch designed for industrial control environments. It features RoHS-compliant construction with a 6/6 Nylon housing and phosphor bronze contacts that are silver plated.
The device supports various actuator options (A, B, C, T, G, E) and includes specific contact resistance and dielectric strength ratings. Additional customization is available through optional caps for the G actuator model.
| Rated Current/Voltage | 50mA @ 48VDC |
|---|---|
| Electrical Life | 100,000 cycles typical |
| Contact Resistance | < 50 mΩ initial |
| Actuation Force | 180+/- 50gF |
| Dielectric Strength | 1000Vrms min |
| Operating Temperature | -40°C to 85°C |
The switch can operate at temperatures up to 85°C.
The typical electrical life is 100,000 cycles.
The switch has a minimum dielectric strength of 1000Vrms.
