The VRE100/101/102 Precision Voltage References provide very high accuracy and extremely low drift. They are suitable for precision A/D and D/A converters, transducer excitation, accurate comparator threshold reference, high-resolution servo systems, digital voltmeters, and high-precision test and measurement instruments.

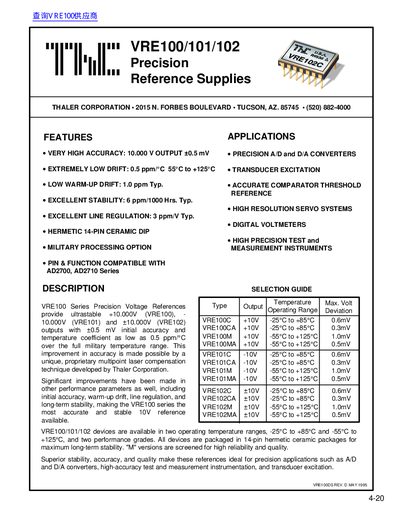

This document describes the VRE100/101/102 series of precision voltage references manufactured by Thaler Corporation. These devices provide ultrastable +10V or -10V outputs with an initial accuracy of 0.5 mV and a temperature coefficient as low as 0.5 ppm/°C over the full military temperature range. The series utilizes a proprietary multipoint laser compensation technique to achieve superior stability compared to previous generations.
| Output Voltage | +10V (VRE100), -10V (VRE101), +10V (VRE102) |
|---|---|
| Long-Term Stability | 6 ppm/1000 Hrs. |
| Line Regulation | 3 ppm/V Typ. |
| Package Type | 14-pin hermetic ceramic DIP |
Yes, they are pin and function compatible with the AD2700, AD2710 Series.
The typical warm-up drift is 1.0 ppm.
